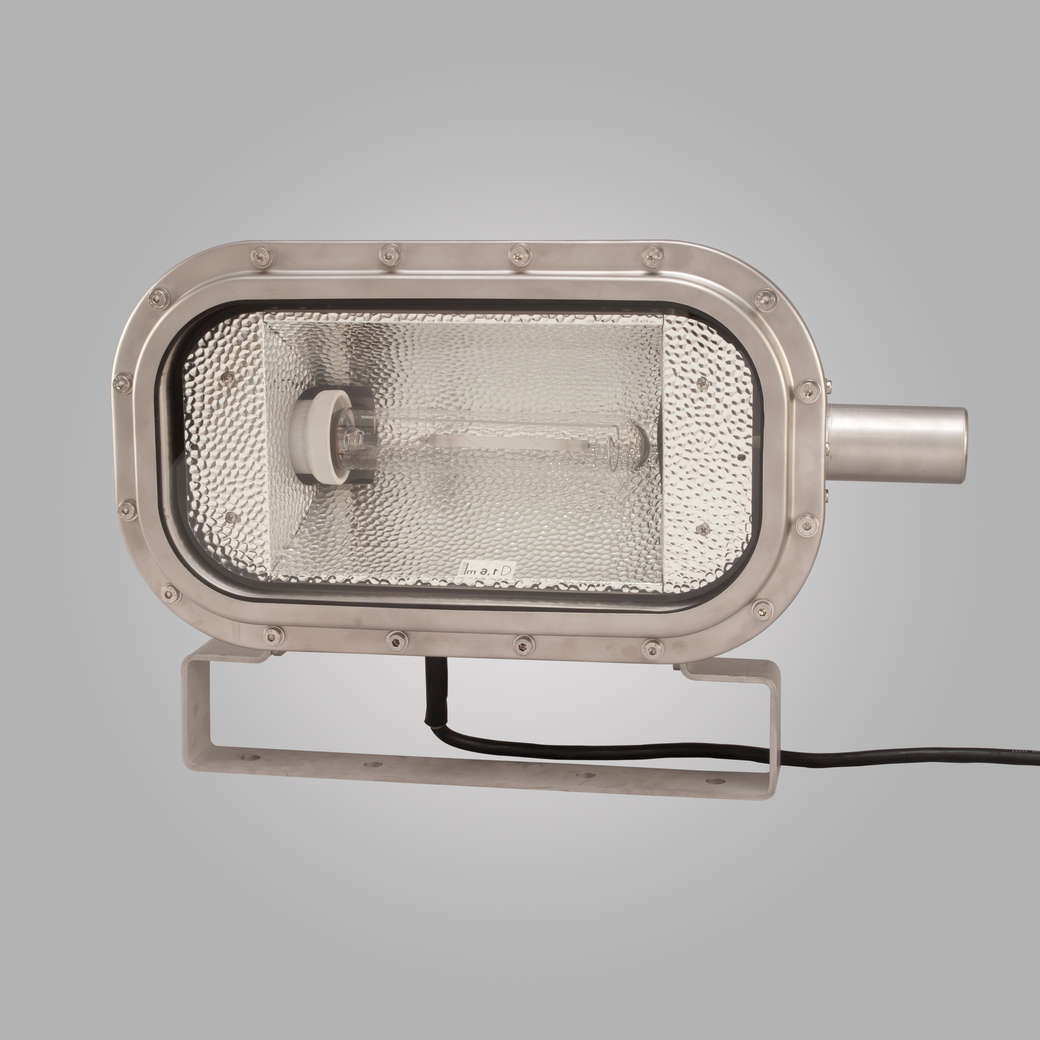

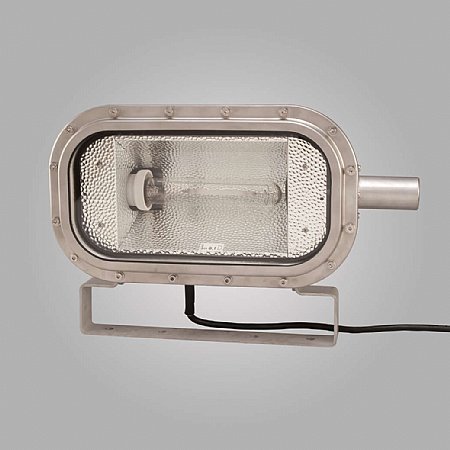

ST68
Watertight floodlight, max. 1x 400 W for HST/HIT lamps, IP68
| Part no. | 5101002300-005 |
|---|---|
| Design | According to rules of maritime classification societies and relevant standards |
| Housing | Stainless steel, 1.4404 (AISI 316L) seamless deep drawn, with ignitor unit on right side, powder coated grey aluminium (RAL9007) |
| Cover | Borosilicated glass, 19 mm thickness |
| Mounting | Stainless steel bracket, adjustable |
| Reflector | Aluminium anodized, wide beam angle |
| Cable entry | Cable gland M25, nickel plated brass |
| Connection type | Rubber cable H07RN-F 3G2.5, 20 meters |
| Ballast | Ballast unit VG76 has to be ordered separately |
| Wiring | Flexible wiring, high temperature resistant |
| Protection class | IP68 |
| Weight | 16.0 kg |
| Light source | HST/HIT lamp (not included) |
| Lamp base | E40 |
| Wattage | 1x 150 - 400 W |
