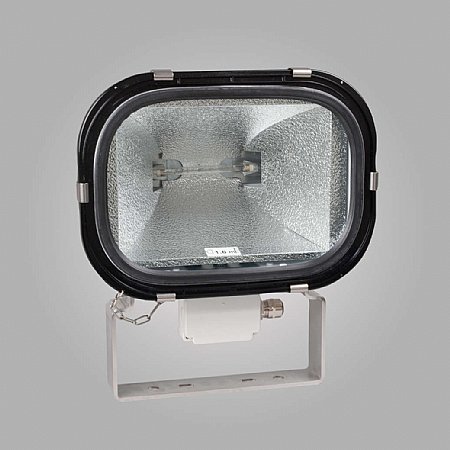

ST76
Floodlight, max. 1x 500 W for halogen lamps
| Part no. | 5101004200-000 |
|---|---|
| Design | According to rules of maritime classification societies and relevant standards |
| Housing | Stainless steel, 1.4404 (AISI 316L) seamless deep drawn, powder coated white (RAL9016) |
| Cover | Tempered glass, DIN 12150 |
| Mounting | Stainless steel bracket, adjustable |
| Reflector | Aluminium anodized, wide beam angle |
| Cable entry | Junction box, cable gland M20, nickel plated brass |
| Wiring | Flexible wiring, high temperature resistant |
| Protection class | IP67 |
| Weight | 4.7 kg |
| Light source | QT-DE lamp (not included) |
| Lamp base | R7s |
| Wattage | 1x 500 W |
| Voltage | 110-240 V AC |
| Frequency | 50-60 Hz |
