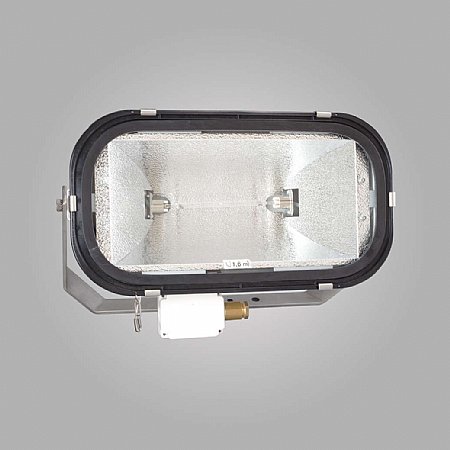

ST76
Floodlight, max. 1x 1000 W for halogen lamps
| Part no. | Wide beam 5101000200-000 Narrow beam 5101000200-002 |
|---|---|
| Design | According to rules of maritime classification societies and relevant standards |
| Housing | Stainless steel, 1.4404 (AISI 316L) seamless deep drawn, powder coated white (RAL9016) |
| Cover | Tempered glass, DIN 12150 |
| Mounting | Stainless steel bracket, adjustable |
| Reflector | Aluminium anodized, wide or narrow beam angle |
| Cable entry | Junction box, cable gland brass with earthing insert |
| Wiring | Flexible wiring, high temperature resistant |
| Protection class | IP67 |
| Weight | 6.5 kg |
| Light source | QT-DE lamp (not included) |
| Lamp base | R7s |
| Wattage | 1x 1000 W |
| Voltage | 220-240 V AC |
| Frequency | 50-60 Hz |
